In: 400V / 125A / 5P
Out: 2x400V / 63A, 4x400V / 32A, 6x230V / 16A CEAG
II 2 G Ex d e IIC T4 Gb
II 2 D Ex tb IIIC T80°C Db

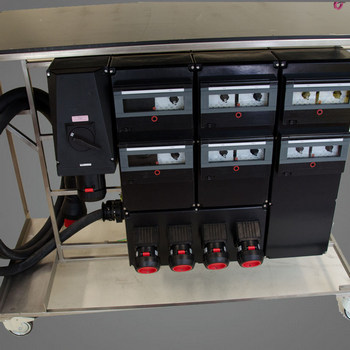

The portable power distribution is a compact and user-friendly energy distribution for safe use in zones 1, 2 and 21, 22. Developed to high quality standards, only components from Eaton are used to ensure the best reliability for the product. The distributions are available as standard in 12V, 24V, 42V, 110V, 230V and 400V. The transportable distributions with integrated protection systems allow the local, individual protection of the connected devices.
In an industrial environment with potential hazards is the protection of people always the first priority. In this situation a main current breaker (MCB), which is directly connected to the end device, is the optimal solution. The enclosures are made of glass-fibre reinforced polyester (GRP), which makes them ideal for harsh environments. The integrated flange sockets also meet the high requirements of protection class IP66 – even with inserted plugs.
