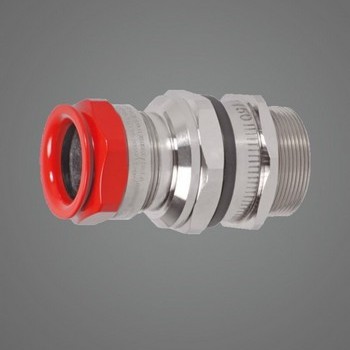

ATEX Capri ADE-1FC

Non-armoured compound barrier cable gland

Specifications:
Reference :  ADE 1Fc

thread : M16 –  M110 - 3/8”NPT – 4”NPT
Cable sizes (OD) : 4.5 – 104mm
Material (standard) Nickel-plated brass

Protection:
II2GD / Ex db IIC/ Ex eb
IIC / Ex tb IIIC II3G Ex nRc
IP66 / IP68
-60°C to +80°C

Available in:
Stainless steel
Aluminium
Bronze

See specs...

See instructions...
